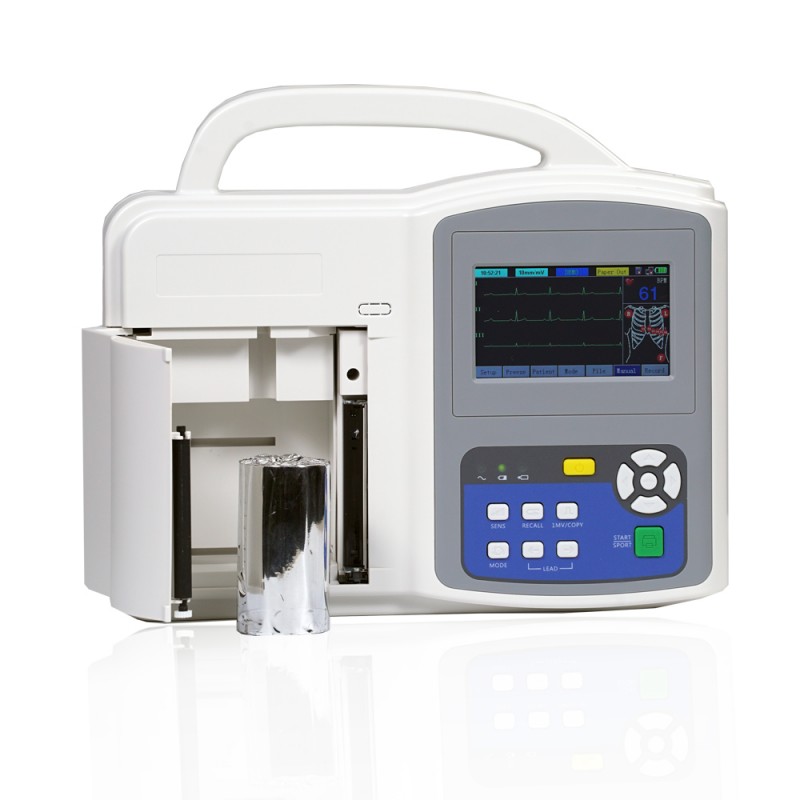

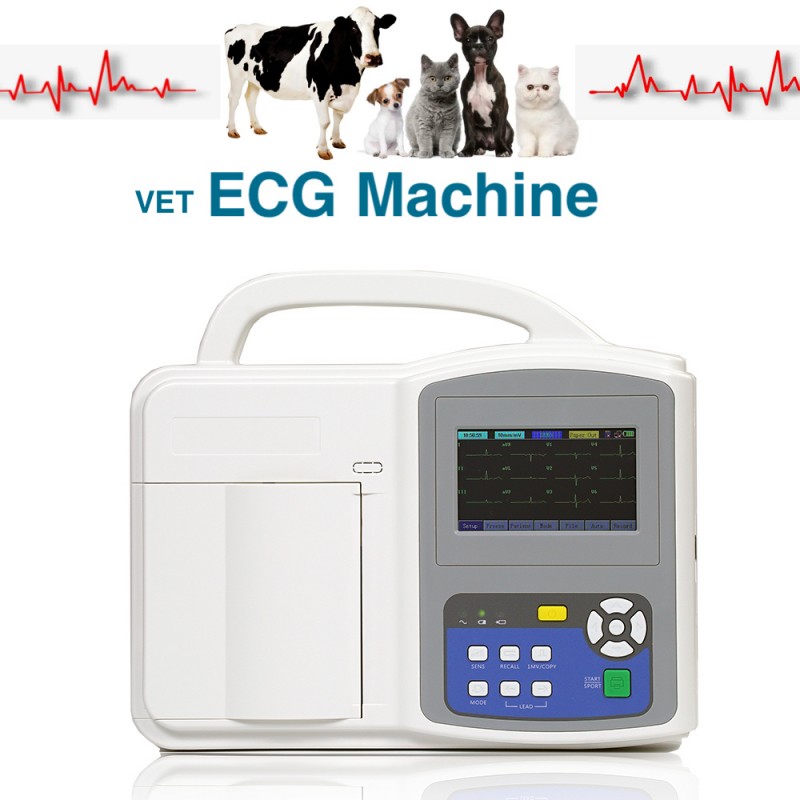

TG0506 Veterinary ECG machine, Pet 3-channel electrocardiograph, Animal Electrocardiograph

Features

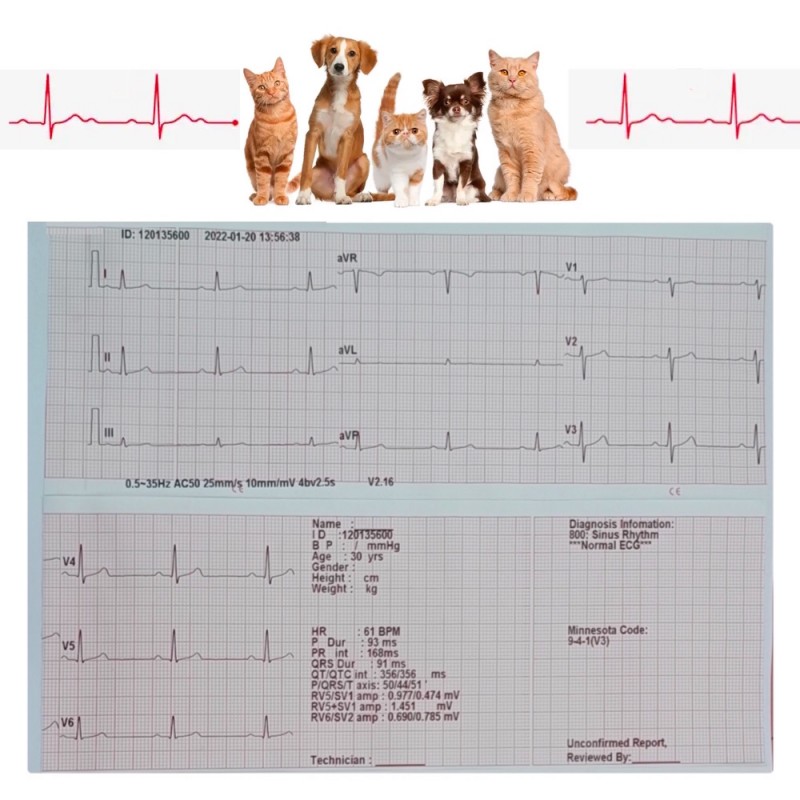

● 3 channel ECG machine with automatic interpretation

● Manual/Auto working Modes

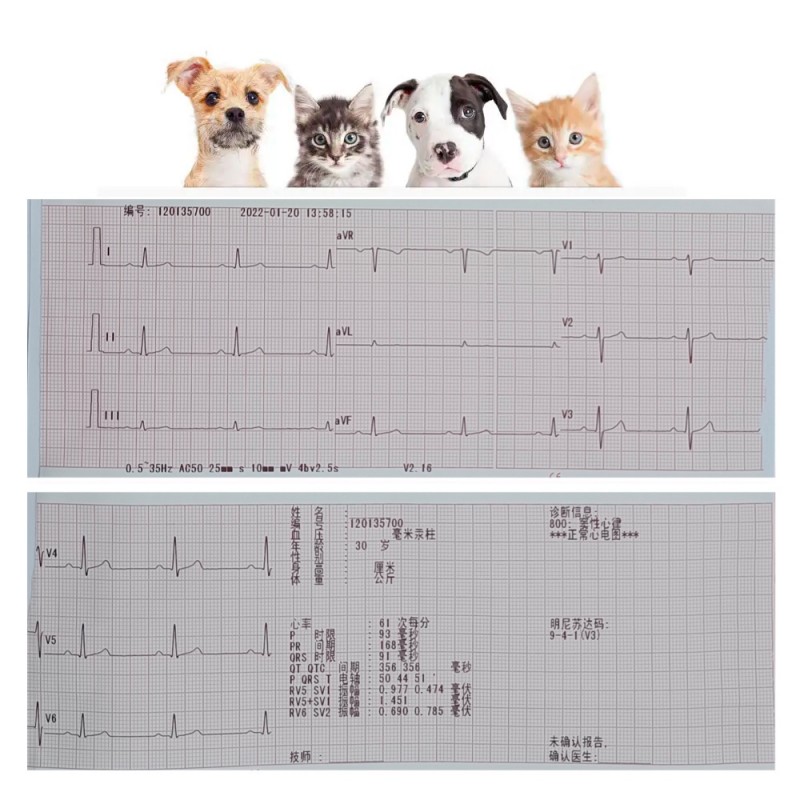

● Simultaneous 7 leads acquisition and 3-ch recording with high resolution thermal printer.

● 4.3 inch Color TFT LCD display ECG wave and friendly menu setting.

● Support touch panel and keypad input ways

● Support SD card storage.

● 120 seconds ECG wave freeze and replay function.

● Lead-off detection and alert

● Digital filtering, resisting baseline drift, AC and EMG interference

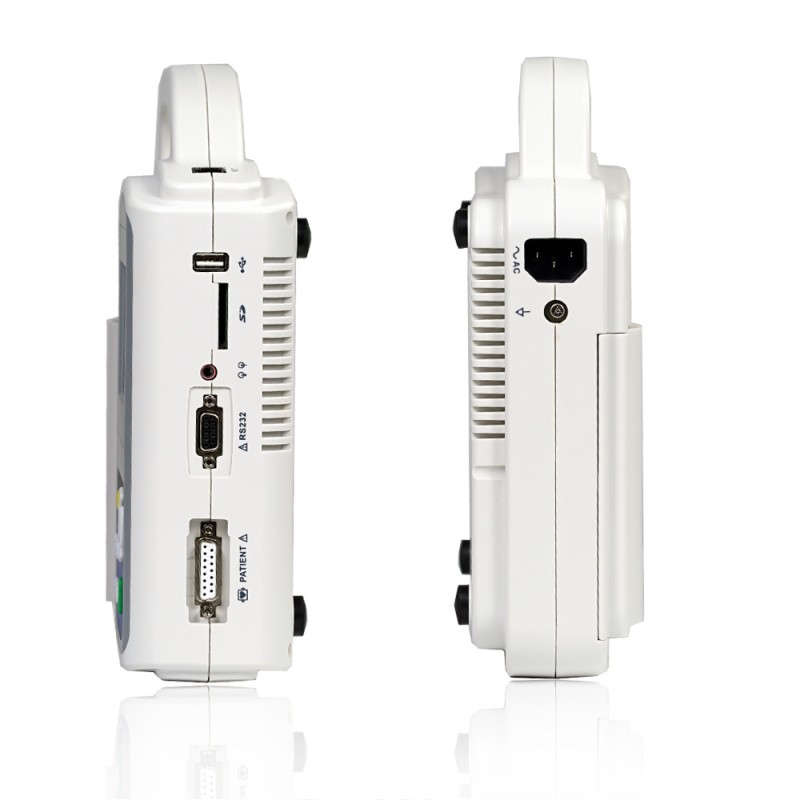

● Built in USB/RS232 interface(ECGNET software optional)

● Built in rechargeable Li-ion battery support less than 3 hours continuously work.

● AC power supply at 100-240V@50/60Hz

Technical Specification

●  Lead: standard 7 leads

●  Lead acquisition: 16bit/24bit 1000Hz（synchronously 7 leads）

●  Work modes: MANUAL、AUTO modes

●  Filter:

 AC Flter : 50Hz / 60Hz

 EMG Filter : 35Hz / 45Hz

 Anti-Drift Filter : 0.15Hz (Adaptive)

●  CMMR: ≥100dB (with AC filter)

●  Input circuit: floating; protection circuit against defibrillator effect

●  Input Impedance: ≥50MΩ

●  Input circuit current: ≤0.05μA

●  Input dynamic range: ±5mVpp

●  Patient current leakage: ＜10μA

●  Calibrating voltage: 1mV±2％

●  Voltage tolerance:≤±600mV

●  Time constant: ≥3.2s

●  Frequency response: 0.05～150Hz(-3db)

●  Noise level: ＜15μVp-p

●  Sensitivity valve: ≤20μV

●  Sensitivity: 2.5, 5,10,20mm/mV

●  Inter-channel Interference: ≤0.5mm

●  Paper speed:5, 10, 12.5, 25, 50mm/s（±3％）

● 100 patient information storage.

●  Display: 4.3 inch TFT LCD with touch panel.
