TG0471 Dental X-ray machine / Sensor
$ 0.00
- Product Code:
- Availability: 76

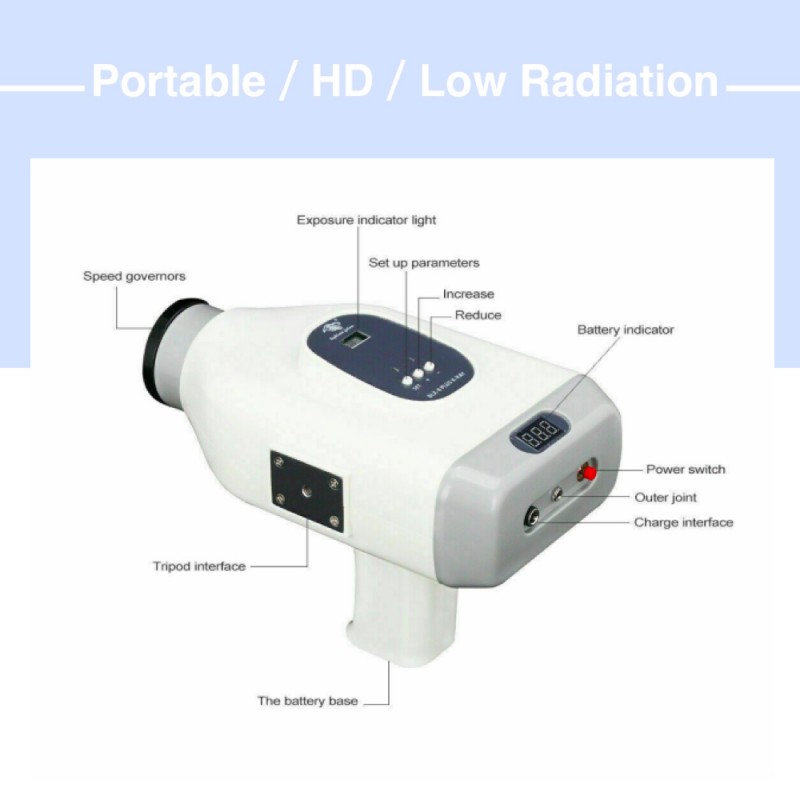

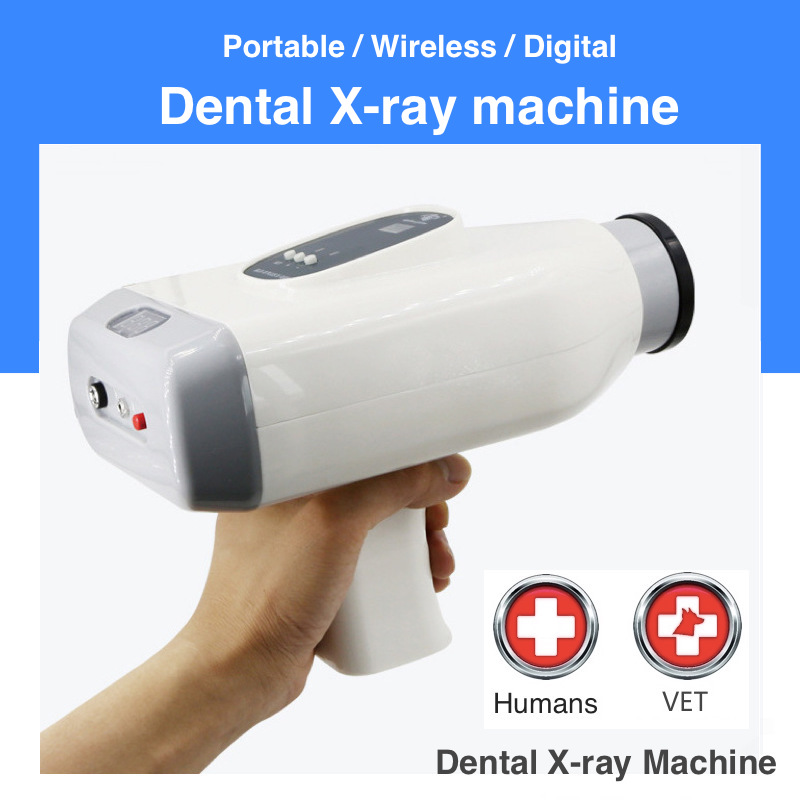

Small size, light weight, portable.
Suitable for humans and animals

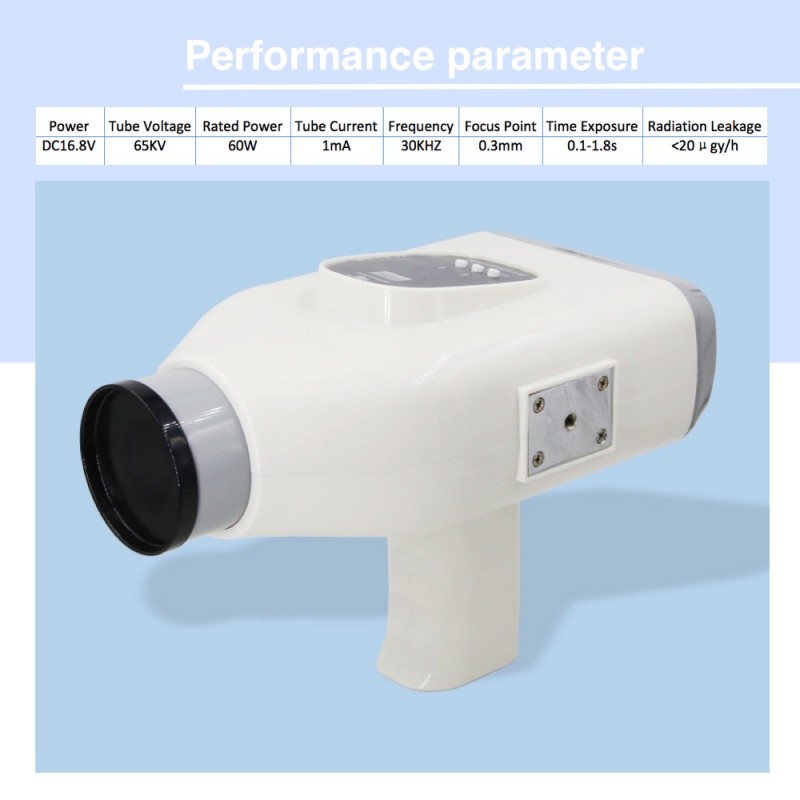

1) Power supply 24V 2600MA
Charger 16.8V 800MA 220V/110V 50Hz
2) Tube current 1MA
3) Frequency 30KHz
4) Exposure time 0.1-1.8 seconds continuously adjustable
5) Radiation leakage <20ugy/h
6) Rated power 60W
7) Focal distance >20cm
8) Tube voltage 65KV
9) Relative humidity <80%
10) Ambient temperature 5-40℃
11) Gross weight 2Kg
Reference exposure time
| Tooth | Adult | Child | Animal |
| Central & Lateral | 0.2-0.3S | 0.2-0.3S | Properly extend or reduce the exposure time according to the size of the teeth |
| Cuspid & 1st Bicuspid | 0.3-0.4S | 0.3-0.4S | |
| Upper 5,6 | 0.5-0.6S | 0.5-0.6S | |
| Upper 7,8 | 1.3-1.8S | 1.2-1.5S | |
| Lower 5,6 | 0.5-0.6S | 0.4-0.5S | |
| Lower 7,8 | 0.6-0.8S | 0.5-0.7S |
Sensor
Imaging principle: photon counting X-ray detector technology.
Effective area (small) 21*21mm2, (large) 25*30mm2.
Sensor area (small) 26.5*32mm2, (large) 30*37mm2.
Gray Step depth: ≥16bits .
Measured spatial resolution: 12~14LP/mm.
Connection type: USB direct connection/wireless connection.
Sensor cable length: 3 meters (extension cable available).
Support system: Windows7, 8,10 / Android
Sensor needs to be purchased separately, X-ray machine does not include sensor
When only purchasing X-ray machine, the scope of supply does not include sensor
When only purchasing the sensor, the scope of supply does not include the X-ray machine
