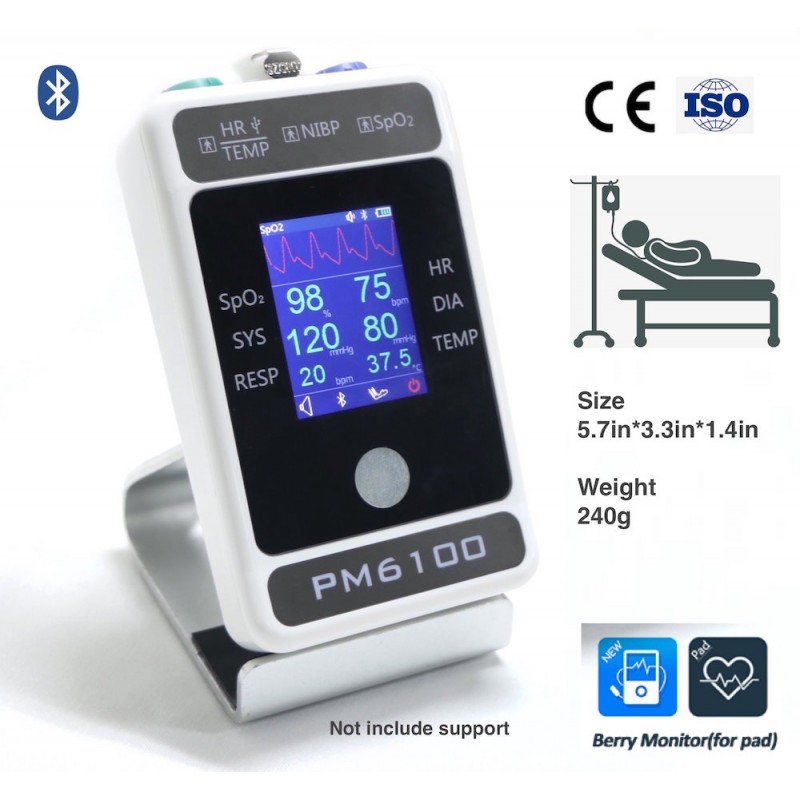

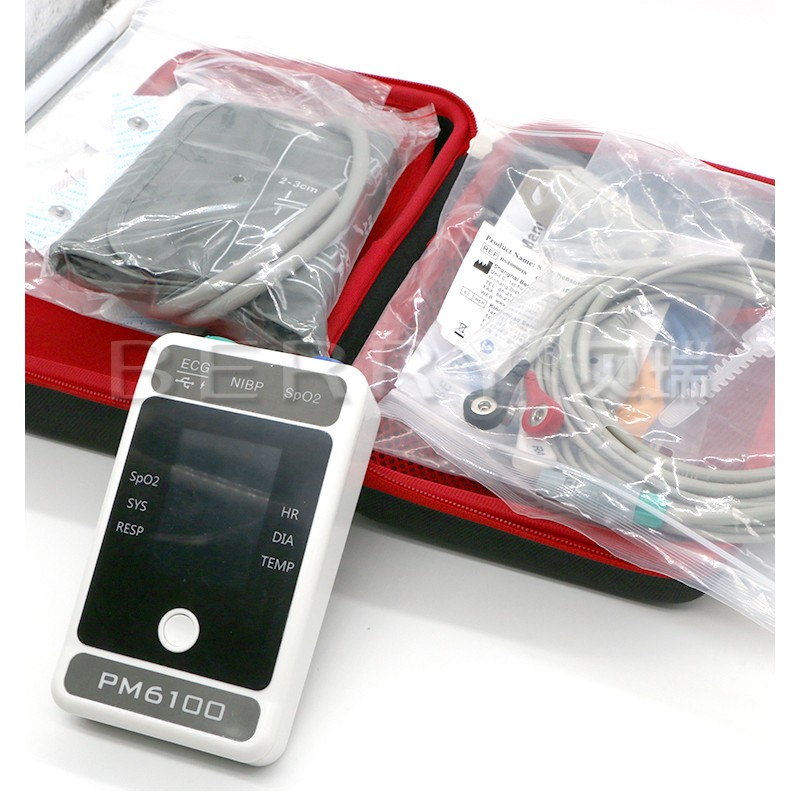

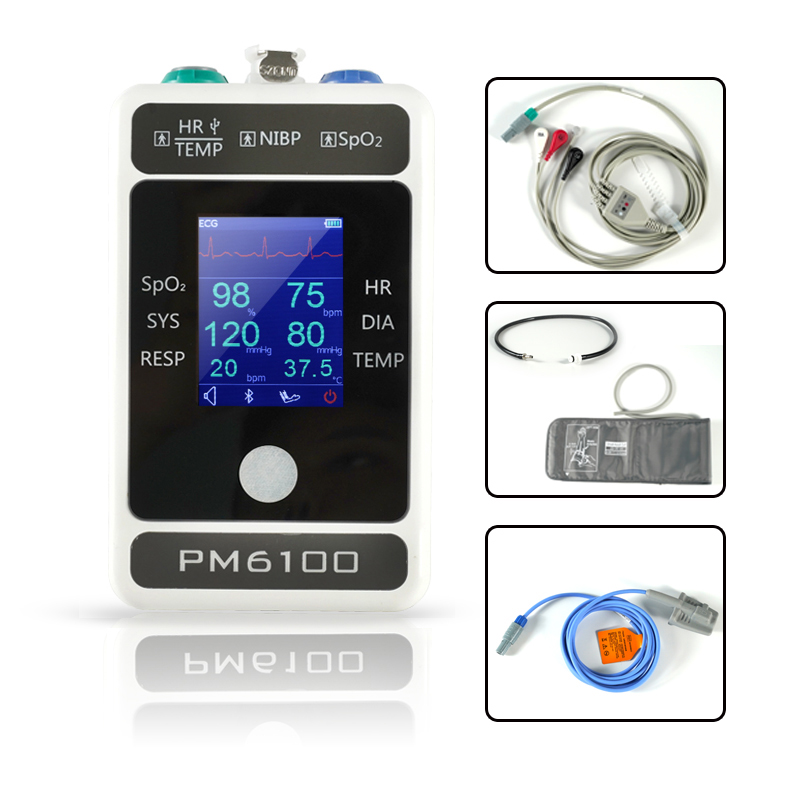

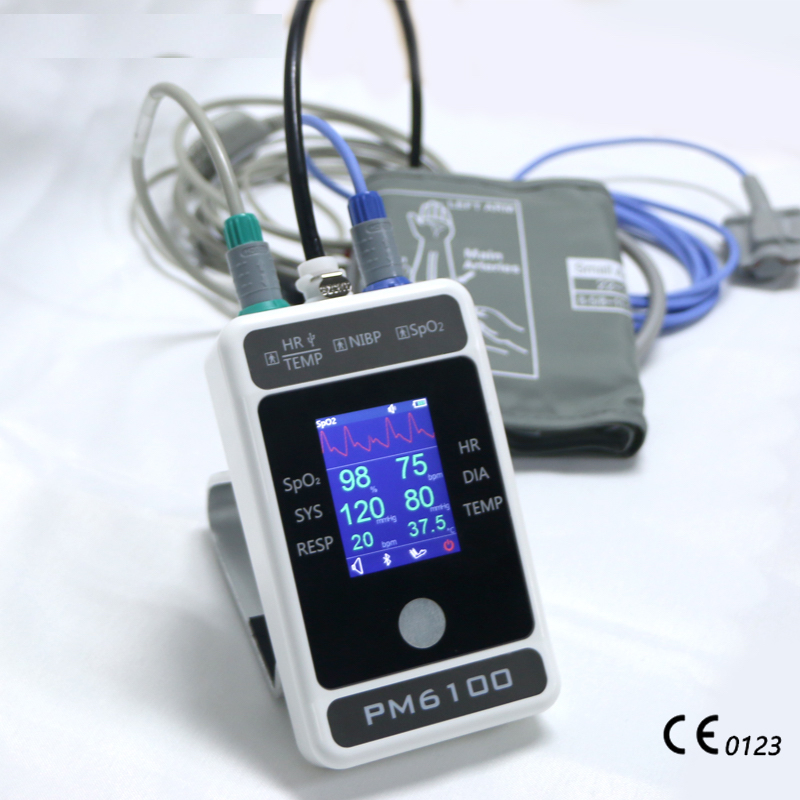

TG0417 Bluetooth portable patient monitor, ECG, HR, NIBP, Spo2, Resp, TEMP

Feature

-  This monitor integrates the functions of parameter measurement,waveform monitoring, etc.Its color TFT liquid crystal display is able to show patient parameters and waveform clearly. The monitor also features compact size,lightweight,easy-to-carry handle and built-in battery,which make it portable in clinic,ward,even at home.

-  This monitor is capable of monitoring parameters:  ECG(Eletrocardiograph), HR(heart rate), NIBP(noninvasive blood pressure), Spo2, Resp(Respration), TEMP(body temperature).

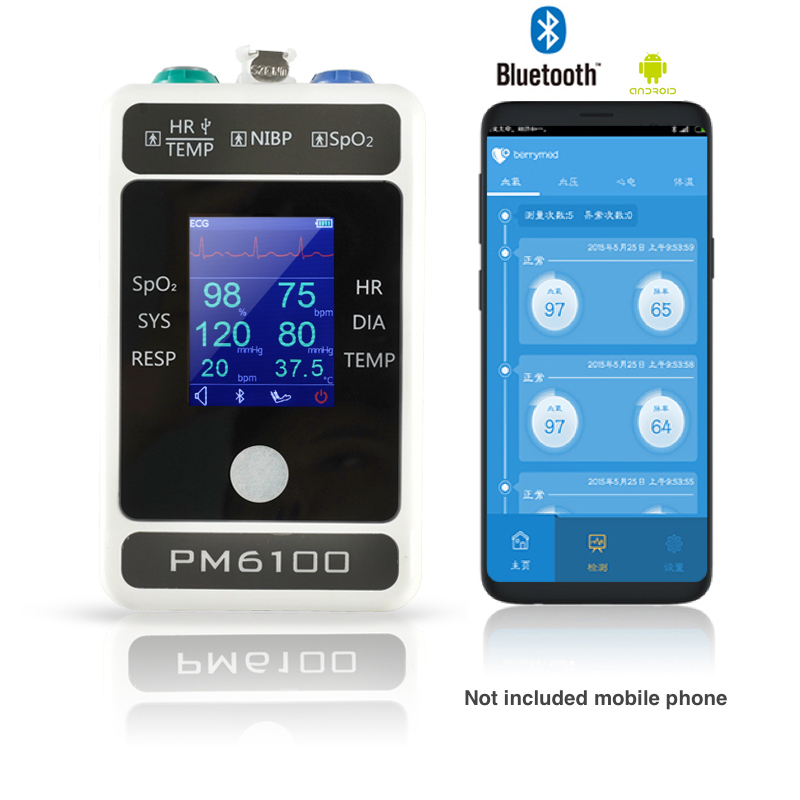

-  The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently.Besides,this monitor can be connected with the other smart terminals such as PC,iphone and Android phones.

Operation   system

Android

ECG

Waveform:   Lead I

Band   width  0.05Hz-100Hz(3dB) diagnose mode

1-40Hz            monitor mode

0.1-25Hz          operation mode

Resp

Chest impedance method

Scope: 0 bpm to 100bpm

Accuracy: ±1bmp

Temp

Type: Vascular/surface temperature

Scope: 20℃-50℃

Accuracy: ±0.2℃

NIBP

Detection scope:

Systolic blood pressure:   4kPa-34kPa(30-255mmHg)

Diastolic pressure:   2kPa-29.3kPa(15-220mmHg)

Mean pressure: 2.7kPa-31.3kPa（20-235mmHg）

Detection accuracy: Static   pressure:±4mmHg

SpO2

Detection scope: 35%-100%

Accuracy: ±2% 80%-100%

±3% 70%-79%

Heart rate

Scope: 15bpm to 300bpm

Accuracy: ±1bpm

AC   adapter

Input:AC100-240v-200mA

Output：DC 5V 1A

 Bluetooth

Support both   Bluetooth 3.0 and BLE 4.0

Built-in-Battery

3.7V，1800mAh lithium battery

Service   life

Over   10000 times

Size

145mm*85mm*37mm

Weight

240g

Display

2.4 inch   color TFT LCD

Key

Power on   and perform functions
